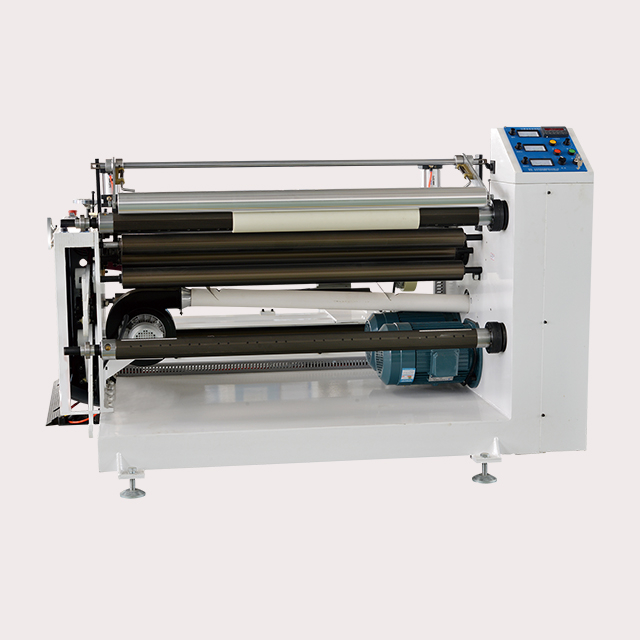

HH1300D Standard slitter rewinder with lamination

  • HH1300D
  • HHM
Suitable for slitting industrial tape, cellophane tape, protection film, copper foil, aluminum foil,
OPP, PP, PE, PVC, paper, cloth, etc.
It's widely used in printing, packaging, electronic, leather, garment - making & rubber industries, etc.

This slitting & laminating machine has high precision and high sensitivity.
The unwinding & rewinding parts use air shaft, and tension is controlled by powder clutch.
The unwind edge control so that it can realize auto testing, auto EPC,
auto meter counting with precise, fast slitting and easy operation.

Main Technical Parameters:
Model HH-1300D HH-1600D
Machine power 3.7KW 3.7KW
Slitting speed 80M/Min 80M/Min
Max. unwind diameter 800MM 800MM
Max. rewind diameter 450MM 450MM
Voltage 380V 380V
