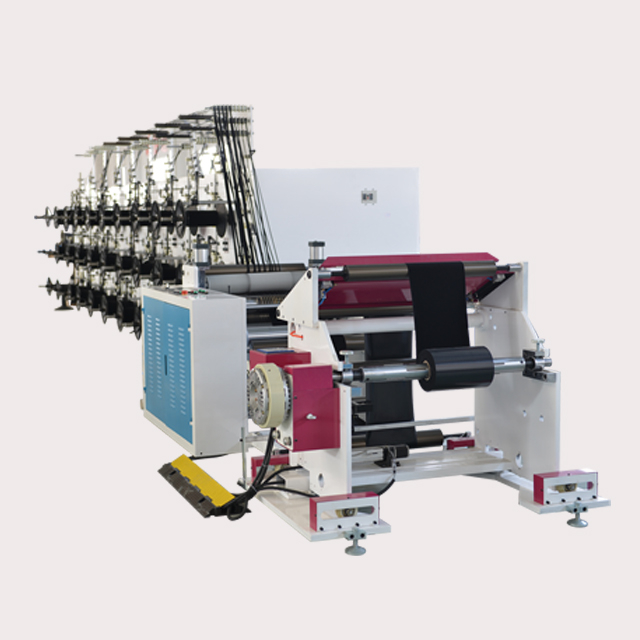

HH300I 24(48) Shafts Spool winding machine (B type)

  • HH300I

  • HHM

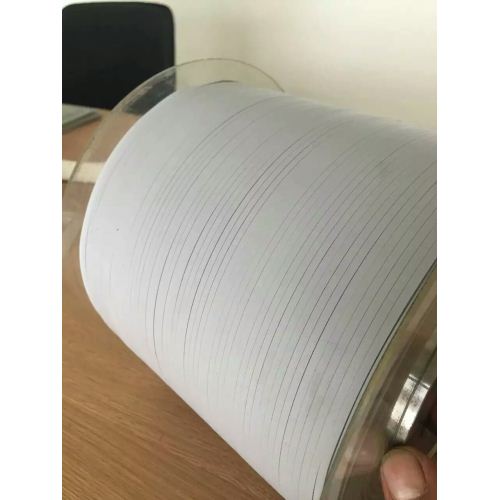

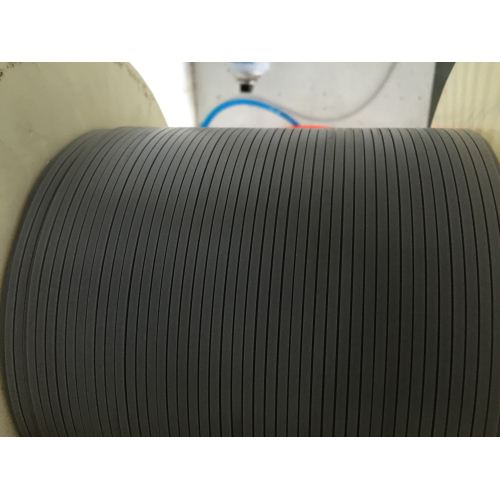

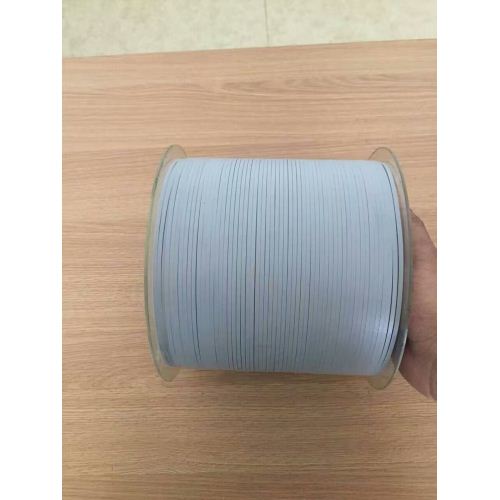

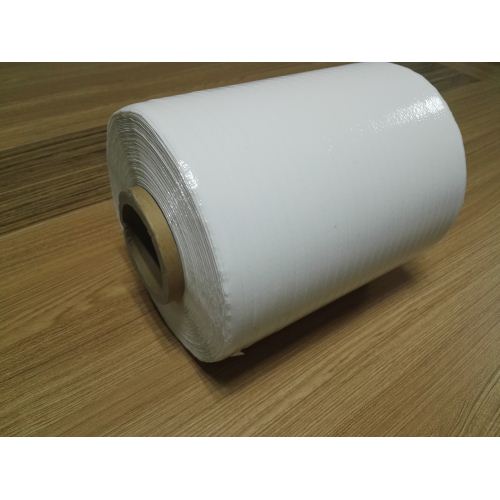

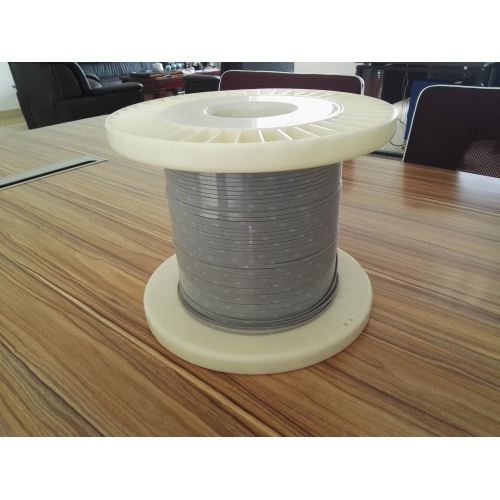

Suitable for slitting, spooling and rewinding PET, EVA foam, form tape, silicone strip, woven fabric, carry handle tape, paper, electrolytic capacitor paper, cotton paper, aluminum foil, adhesive tape, etc.
Example of application:
Auto sealing upper & lower cover tape of electronic products, auto sealing food packing industry & wrapping thin coaxial cables.

1. EPC system
2. Shear blade/ industry knife/ air blade/ rotary blade slitting
3. Center surface type rewinding
4. Moveable rewind shafts or fixed spool winder shafts (depends on materials)
5. PLC calculating for auto tension control

Technical parameters:
Machine width: 300-800MM
Max. Unwind diameter: 1000MM
Min. Slitting width: 1MM
Max. Slitting width: 50MM
Max. Rewind diameter: 400MM
Unwind paper core I.D: 3” / 6”
Rewind paper core I.D: 3”-6”
Rewind product quantity: From 1roll to 66rolls, even more.(Based on your needs)
Max. Width of finished product: 50-450MM
Machine speed: 0-100m/min
